Description

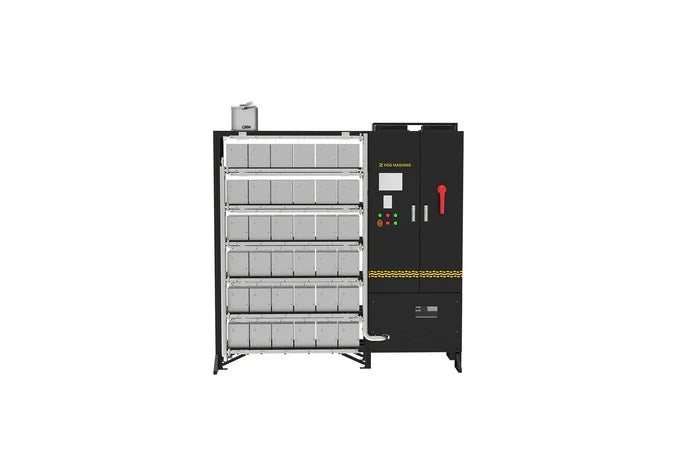

| The Fog Hashing H200-S series is a Hydro Cooling system specifically designed for Hydro mining. The pre-installed design offers easy expandability for warehouse deployment.
The Fog Hashing H200-S offers a redundant design capable of supporting 200kW of mining power. The Fog Hashing H200-S supports 36* Bitcoin miners inside including the Bitmain S21 XP and S21 Hydro. The H200-S has an integrated automated control system, providing seemless operation. This series is designed for Bitcoin mining heat reuse which includes an optional dry cooler or closed water cooling tower provided. |
H200-CDU Specification:
| Outer Size Dimensions (L*W*H) (mm) | 2100*800*1000 |
| Cooling Medium | Pure Water/Soften water + Antifreeze + Corrosion Inhibitor |
| Ambient Temperature (°C) | -25 ~ 55 |
| Operation Humidity | 5%-95%RH |
| Input Voltage | 3-phase 350-480V 50/60Hz |
| Max Power Load (KW) | 3.5kW |
| Cooling Capacity (kW) | 200kW |
| Rated Flow Rate | 15m2/h |
| Fluid Inlet Temperature (°C) | 10 |
| Fluid Outlet Temperature (°C) | 10 |
| PLC System | Constant flow control with pressure regulation |
| Communication Method | Modbus-RTU, TCP/IP |
| Design Pressure | 0.3MPa |
H200-S Specifications:
| Outer Size Dimensions (L*W*H) (mm) | 1550*400*2200 |
| Max Power Load (kW) | 226 |
| Miner Capacity | 36* S21 XP/ S21 Hydro |
| Input Voltage | 3-phase 350-480V 50/60Hz |
| PDU | PDC/PDU |
| Network | 1000M Network Switch*2 |
| Operation Temperature | -25 ~ 35℃ |
| Operating Humidity |
5%~95%RH |
| Water Manifold |
Stainless Steel |
| Hose |
EPDM Hose + Quick Connects. |
H200-Dry Cooler Specification:
| Model | FHWDC200 |
| Module | Dry Cooler V Type |
| Cooling Capacity | 200kW |
| Weight (Empty Load) | 800 Kg |
| Fans | 2 |
| Fluid | Coolant |
| Fluid Flowrate | 20m³/h |
| Inlet Temperature (°C) | 55 |
| Outlet Temperature (°C) | 40 |
| Ambient Temperature | 35℃ |
| Fin/Tube Materials | 304 Stainless steel，Al-mg/AI |
| Operating/Maximum Pressure | 0.3MPA/1.6MPA |
